Common Mode Cores

For EMI-noise suppression in Switched-Mode Power Supplies, Frequency Inverters and many other applications, tape-wound cores made of iron-base nano-crystalline 1K107 offer significant advantages in volume and performance. The material property, such as high initial permeability in graded permeability levels between 30 000 and 100 000, high saturation flux density, low core losses and an extended operational temperature range.

Common mode chokes with nano-crystalline cores offer the following features:

1, High inductance with a low number of turns and small winding capacities.

2, Broadband insertion loss curve with good damping performance over a wide frequency band.

3, Small choke size for volume- and weight optimized solutions.



Core information:

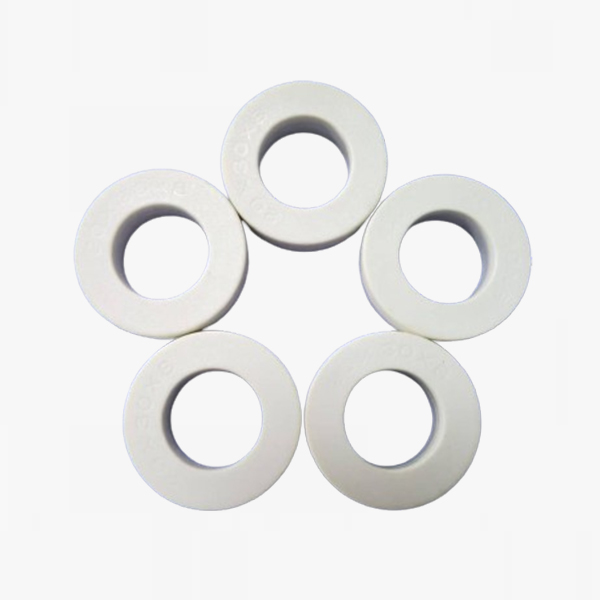

All below listed cores are inserted in PBT or PA66

cases and fixed with silicon rubber to

achieve good magnetic property and good

mechanical protection. Our plastic cases are

suitable for direct winding. Epoxy coated core

design is available on the further request.



Material data of AM-EMC-XXX :

Saturation flux density....................... 1.2T

 Specific electrical resistance…………130μΩ-cm

Curie temperature…………………..… 560 °C

Upper temperature limit

(continuous operation)……………… 130 °C

Permeability μ3 (at 10 kHz)………….. 30 000 to 100 000 Permeability u(at150kHz)…………….8000 to20000

Core standard sizes:

Part number,

order code

Finished dimensions

OD/ ID/ H (mm)

effective core cross-section AFe (cm²)

Mean core path length

lFe ( cm)

AL - value uH

AL (10 kHz)

AL - value uH

AL (150 kHz)

Note



AM-EMC-9*6*5

11*5*6.1

0.047

2.4

8-25

2.5—4.5

Single

phase

AM-EMC-12*8*5

14*6.5*7.1

0.063

3.1

9--24

2.5—4.5

AM-EMC-15*10*5

17.1* 7.9 *6.5

0.090

3.93

9--24

2.5—4.5

AM-EMC-20*12*8

22*10*10.5

0.22

5.0

18-48

4.8--9

AM-EMC-20*12*10

22*10*12.5

0.28

5.0

21-60

6--11

Single

phase

AM-EMC-21*15*10

22.5*12.5*12.5

0.21

5.7

15-40

4—7.5

AM-EMC-25*20*10

27*18*12

0.175

7.1

10-26

2.5--5

AM-EMC-25*16*8

27*14*10.5

0.25

6.4

16-43

4.3—7.9

AM-EMC-26*16*10

28*14*12.5

0.35

6.6

20-67

6.5--11

AM-EMC-30*20*10

32*18*12.2

0.35

7.9

16.8-44

4.5—9

Single

or

Three

Phase

AM-EMC-32*20*10

34*18*12.5

0.42

8.2

19-52

5—8

AM-EMC-38*30*20

41*27*24

0.52

10.7

19-53

5.3—8

AM-EMC-40*25*10

43*23*12.5

0.52

10.2

19-52

5.2--9

AM-EMC-40*25*15

43*23*18

0.78

10.2

29-77

7.5—15









Three

phase

AM-EMC-50*32*15

53*29*18

0.94

12.9

27-74

7—14

AM-EMC-52*36*18

55*33*25

1.12

13.8

30-81

8—15

AM-EMC-52*36*25

*33*29

1.68

16.3

38-103

10—19

AM-EMC-65*40*30

68*37*35

1.31

18.1

100-160

15--40

AM-EMC-80*50*25

83*47*29

2.8

20.4

85--155

15--29



AM-EMC-90*60*20

93*57*24

2.25

23.6

60--110

10--19



AM-EMC-103*75*30

107*71*34

3.15

27.9

70--130

12--21





Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
