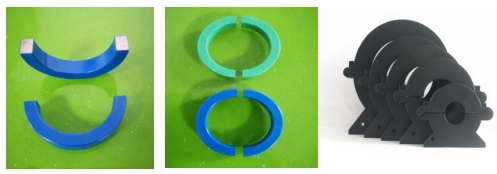

应用: 1 医疗X光机、超声、磁共振MRI 用高压变压器. 2 电镀、焊机、感应加热电源变压器。 3 太阳能、风能、高铁电源变压器. 优点: 1 高饱和感应强度----减小体积 2 方形----易于安装 3 超低铁损----低的温升 4 良好温度稳定性----能工作在 -20－150oC 5 很宽的工作频率20KHz to 100KHz 6 大功率场合----1kw to 100kw. 材料性能: 磁饱和感应强度 | 1.25T | 硬度 | 960kg/mm2 | 居里温度 | 560°C | 密度 | 7.18g/cm3 | 晶化温度 | 510°C | 电阻率 | 130μΩ-cm | 铁损@20KHz,300mT | <16w/kg | | |

规格: 表一 型号. | 尺寸 (mm) | 有效截面 (cm2) | 磁路长度 (cm) | 重量 (g) | a | b | c | d | e | f | AM-NC-6.3 | 10+1 | 11 | 33 | 20+1 | 31+1 | 53+2 | 1.6 | 13.1 | 147 | AM-NC-8 | 11+1 | 13 | 30 | 20+1 | 35+1 | 52+2 | 1.8 | 13.2 | 165 | AM-NC-10 | 11+1 | 13 | 40 | 20+1 | 35+1 | 62+2 | 1.8 | 15.4 | 190 | AM-NC-16A | 11+1 | 13 | 40 | 25+1 | 35+1 | 62+2 | 2.3 | 15.1 | 240 | AM-NC-16B | 11+1 | 13 | 50 | 25+1 | 35+1 | 72+2 | 2.3 | 16.9 | 270 | AM-NC-20 | 11+1 | 13 | 50 | 30+1 | 35+1 | 72+2 | 2.7 | 17.5 | 320 | AM-NC-25 | 13+1 | 15 | 56 | 25+1 | 41+1 | 82+2 | 2.7 | 19.6 | 360 | AM-NC-32 | 13+1 | 15 | 56 | 30+1 | 41+1 | 82+2 | 3.2 | 20 | 435 | AM-NC-50 | 16+1 | 20 | 70 | 25+1 | 52+1 | 102+3 | 3.3 | 24.9 | 565 | AM-NC-63 | 16+1 | 20 | 70 | 30+1 | 52+1 | 102+3 | 3.9 | 25.3 | 688 |
表二. 型号. | 尺寸 (mm) | 有效截面 (cm2) | 磁路长度 (cm) | 重量 (g) | a | b | c | d | e | f | AM-NC-56 | 8+0.5 | 40.5 | 40.5 | 8+0.5 | 56+1 | 56+1 | 0.5 | 19.4 | 70 | AM-NC-66 | 12+0.5 | 25 | 42 | 12+0.5 | 50+1 | 66+2 | 1.3 | 18.4 | 170 | AM-NC-70 | 10+0.5 | 17 | 51 | 12+0.5 | 37+1 | 70+2 | 1.02 | 17.6 | 125 | AM-NC-75 | 12+0.5 | 50 | 52 | 12+0.5 | 75+1 | 75+2 | 1.3 | 25.4 | 230 | AM-NC-82 | 12+0.5 | 18 | 29 | 12+0.5 | 42 | 82+1 | 1.2. | 14.2 | 180 | AM-NC-85 | 15+0.5 | 23.2 | 55.5 | 15+0.5 | 53+1 | 85+1 | 1.8 | 21.7 | 280 | AM-NC-100 | 20+0.5 | 60 | 61 | 20+1 | 100+1 | 100+2 | 3.2 | 32.2 | 770 | AM-NC-119 | 12+0.5 | 65.5 | 95 | 15+0.5 | 89+1 | 119+2 | 1.4 | 36.9 | 400 | AM-NC-120 | 20+1 | 32.5 | 80 | 20+1 | 72+1 | 120+2 | 3.2 | 30.5 | 710 | AM-NC-130 | 20+1 | 60.5 | 90 | 20+1 | 100+2 | 130+2 | 3.2 | 38.1 | 900 | AM-NC-150A | 25+1 | 55.5 | 100 | 25+1 | 105+2 | 150+2 | 5.0 | 41.1 | 1390 | AM-NC-150B | 25+1 | 78.5 | 100 | 25+1 | 128+2 | 150+2 | 5.0 | 45.7 | 1750 | AM-NC-150C | 25+1 | 78.5 | 100 | 30+1 | 128+2 | 150+2 | 6.0 | 45.7 | 2050 | AM-NC-150D | 20+1 | 45 | 111 | 20+1 | 85+1 | 150+2 | 3.2 | 39.2 | 920 | AM-NC-150E | 25+1 | 62 | 101 | 25+1 | 112+1 | 150+2 | 5.0 | 42.6 | 1590 | AM-NC-150F | 25.8+0.5 | 66 | 99 | 25+1 | 118+1 | 150+2 | 5.4 | 43.3 | 1690 | AM-NC-170 | 25+1 | 45 | 122 | 25+1 | 95+1 | 170+3 | 5.0 | 43.4 | 1690 | AM-NC-188 | 24+0.5 | 89 | 141 | 25+0.5 | 137+1 | 188+3/-1 | 4.8 | 55.6 | 1920 | AM-NC-190A | 25+1 | 40.5 | 141 | 30+1 | 90+2 | 190+3/-1 | 6.0 | 46.1 | 1950 | AM-NC-190B | 25+1 | 76 | 141 | 30+1 | 126+2 | 190+3/-1 | 6.0 | 53.4 | 2330 | AM-NC-190C | 25+1 | 89 | 141 | 25+1 | 139+1 | 190+3/-1 | 5.0 | 56 | 2030 | AM-NC-204 | 32+1 | 76 | 141 | 25+1 | 140+1 | 204+3/-1 | 6.4 | 56.2 | 2560 | AM-NC-280 | 45+1 | 40.5 | 191 | 30+1/-0.5 | 130+1 | 280+3/-1 | 11.4 | 64.3 | 4916 | AM-NC-320 | 55+1 | 40.5 | 211 | 30+1/-0.5 | 150+2 | 320+4/-2 | 13.9 | 72.3 | 6730 |
Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
|
